The RHHF-220F fully automatic flat handle paper bag machine is designed for producing high quality flat handle paper bags. It is versatile and flexible in paper bag size and thickness.
The machine can adjust the cutting length of the paper bag between 190-390mm according to your requirements. It supports paper thickness of 45-120g/m² (without handle) and 60-120g/m² (with handle).
The machine has a maximum speed of 200 pieces per minute, which ensures efficient production. The paper bag width can be adjusted between 90-220mm, depending on whether the handle is included.
The paper bag bottom width can also be adjusted between 50-100mm, providing further customization for various applications.

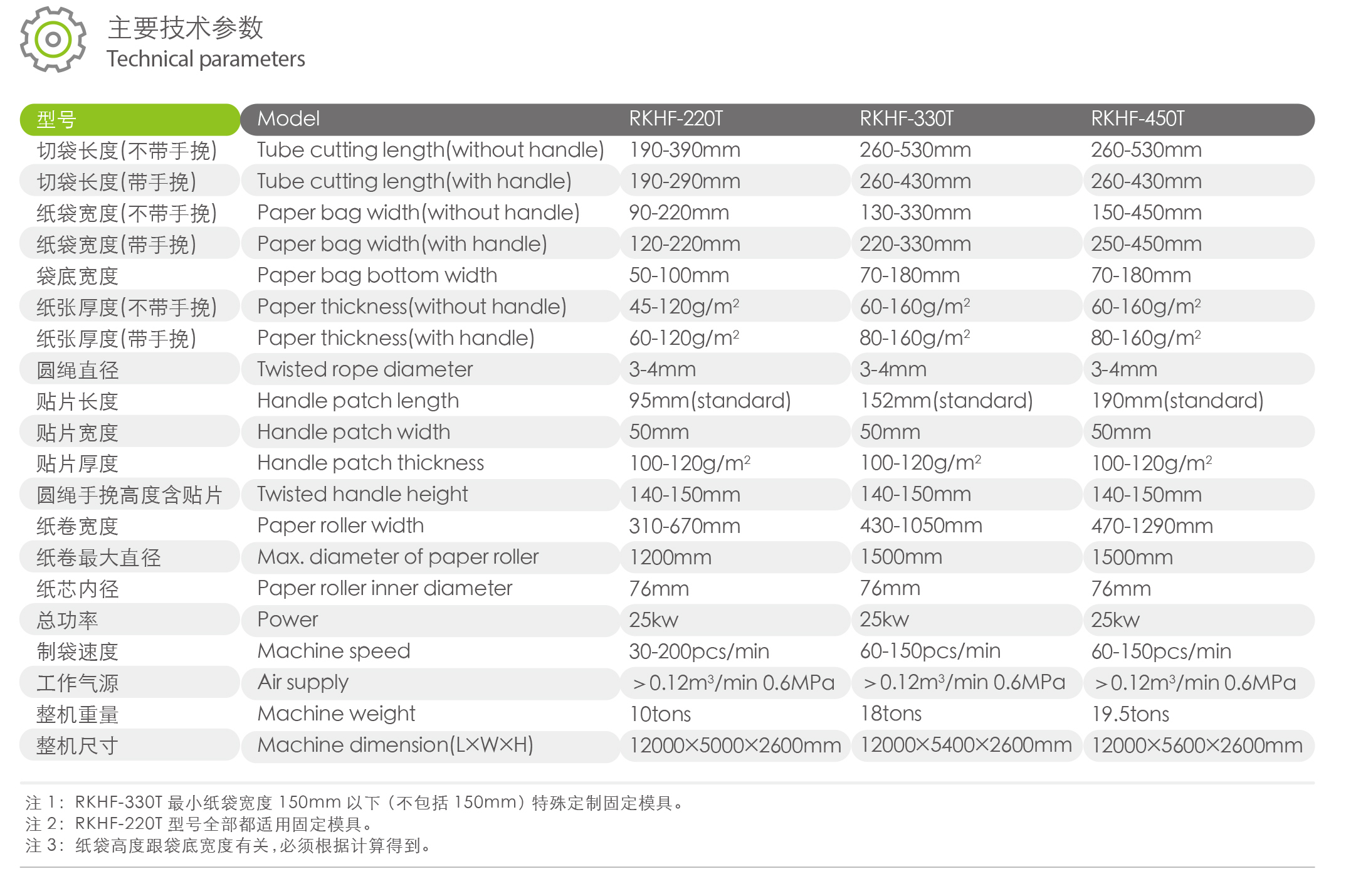

Product Parameters
Model Parameters | RKHF-220F | RKHF-330F | RKHF-450F | RKHF-460F |
Paper bag cutting length (C) | 190-390mm (without handle) 190-290mm (with handle) | 260-530mm (without handle) 260-430mm (with handle) | 260-530mm (without handle) 260-430mm (with handle) | 300-630mm (without handle) 300-530mm (with handle) |
Paper bag width(W) | 90-220mm (without handle) 120-220mm (with handle) | 130-330mm (without handle) 220-330mm (with handle) | 150-450mm (without handle) 250-450mm (with handle) | 200-460mm (without handle) 250-460mm (with handle) |
Paper bag bottom width (H) | 50-100mm | 70-180mm | 70-180mm | 90-220mm |
Paper thickness | 45-120g/m2 (without handle) 60-120g/m2 (with handle) | 60-160g/m2 (without handle) 80-160g/m2 (with handle) | 60-160g/m2 (without handle) 80-160g/m2 (with handle) | 60-160g/m2 (without handle) 80-160g/m2 (with handle) |
Max. speed | 30-200pcs/min | 60-150pcs/min | 60-150pcs/min | 60-150pcs/min |

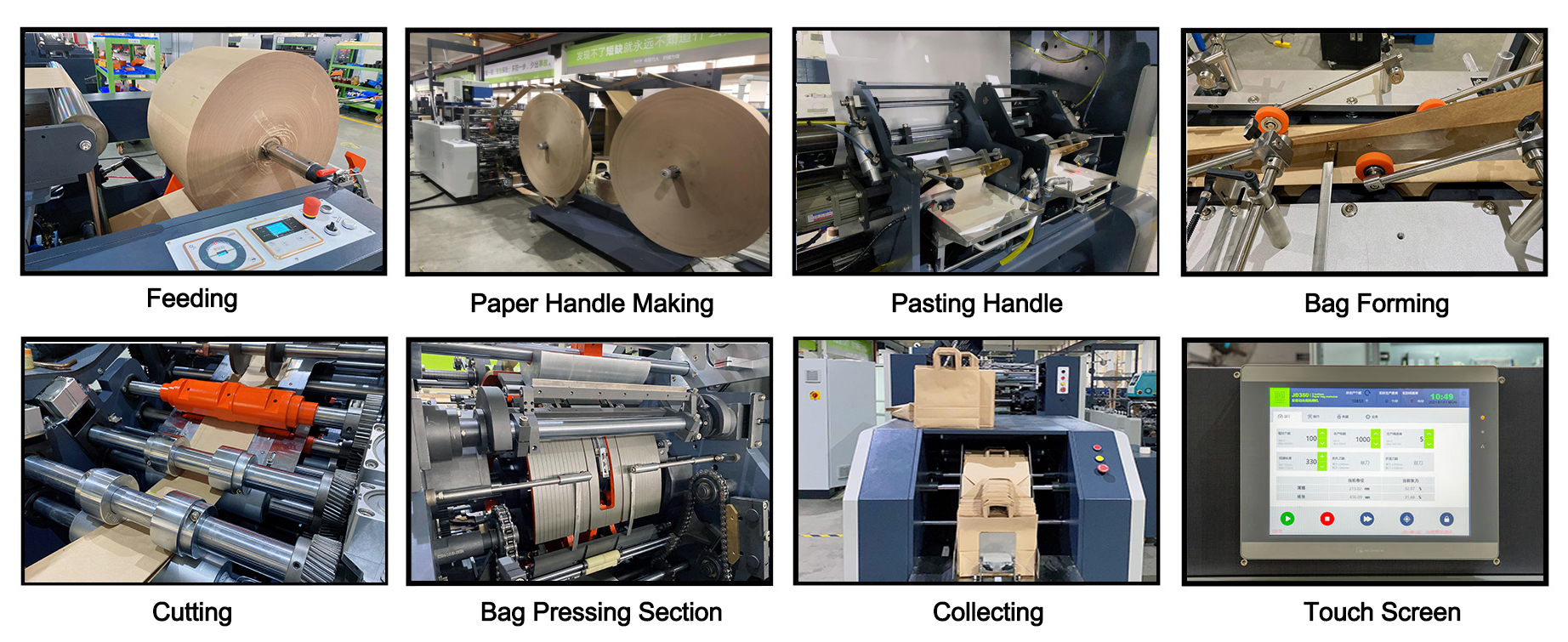

Features of RHHF-220F Full Automatic Paper Bag Machine with Flat Handle
Fully automatic operation: The machine runs automatically, reducing manual intervention.
Support roll feeding: It can handle roll materials to make the process more efficient.
Produce twist bags and flat handle bags: It has a wide range of uses and can produce two types of paper bags.
Efficient and stable: The machine has stable performance and improves production efficiency.
High cost performance: It reduces labor costs by minimizing manual labor.
Photoelectric detection: Equipped with photoelectric detectors, it can correct the cutting length and ensure accuracy.
Paper bag collection and counting: It adopts a special collection platform and counting function to improve packaging efficiency.
Advantages of RHHF-220F Full Automatic Paper Bag Machine with Flat Handle
User interface: Touch screen operation can display the machine status in real time for easy monitoring.
Servo motor drive: It provides stable and efficient operation to ensure consistent performance.
Automatic tension control: Maintain optimal tension throughout the production process.
Dual photoelectric sensors: Automatically correct alignment, improve energy efficiency and extend machine life.
Non-stop adjustment: The double bottom structure allows intuitive, simple and time-saving adjustments without stopping the machine.
Glue roller protection: Prevents glue from directly contacting the roller, reducing maintenance issues.
Color tracking system: Automatically triggers an alarm if a color mismatch occurs during production.
Applications of RHHF-220F Full Automatic Paper Bag Machine with Flat Handle
Ideal for producing medium to large paper bags.
Suitable for a variety of uses such as food packaging bags and shopping bags.
FAQs of RHHF-220F Full Automatic Paper Bag Machine with Flat Handle
1. What is the maximum speed of the RHHF-220F paper bag machine?
RHHF-220F can produce up to 200 per minute, depending on the bag specifications.
2. What types of paper bags can the RHHF-220F produce?
The machine can produce twist handle and flat handle paper bags for a variety of applications.
3. What is the range of paper thickness the paper bag machine can handle?
The machine supports paper thicknesses of 45-120g/m² (without handles) and 60-120g/m² (with handles).
4. Can the paper bag machine automatically adjust the bag size?
Yes, the RHHF-220F can automatically adjust the size of the cutting length and width to provide flexibility for production.
5. Is the paper bag machine easy to operate?
The RHHF-220F has a touch screen interface that allows easy operation and real-time monitoring of the machine status.
