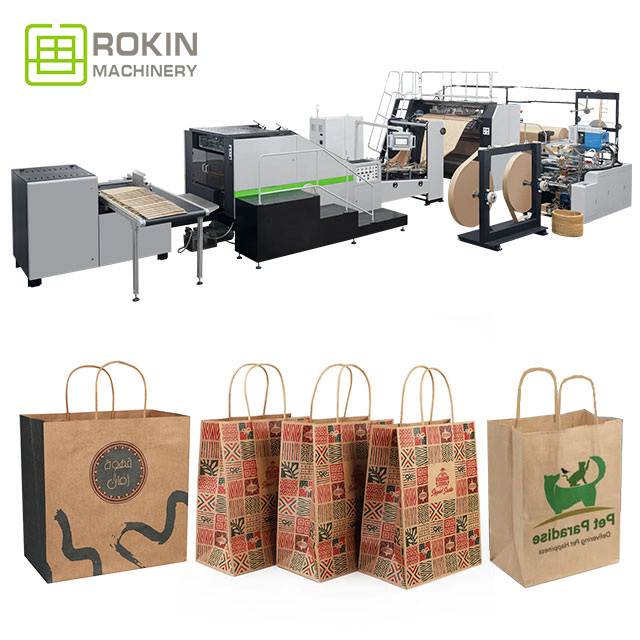

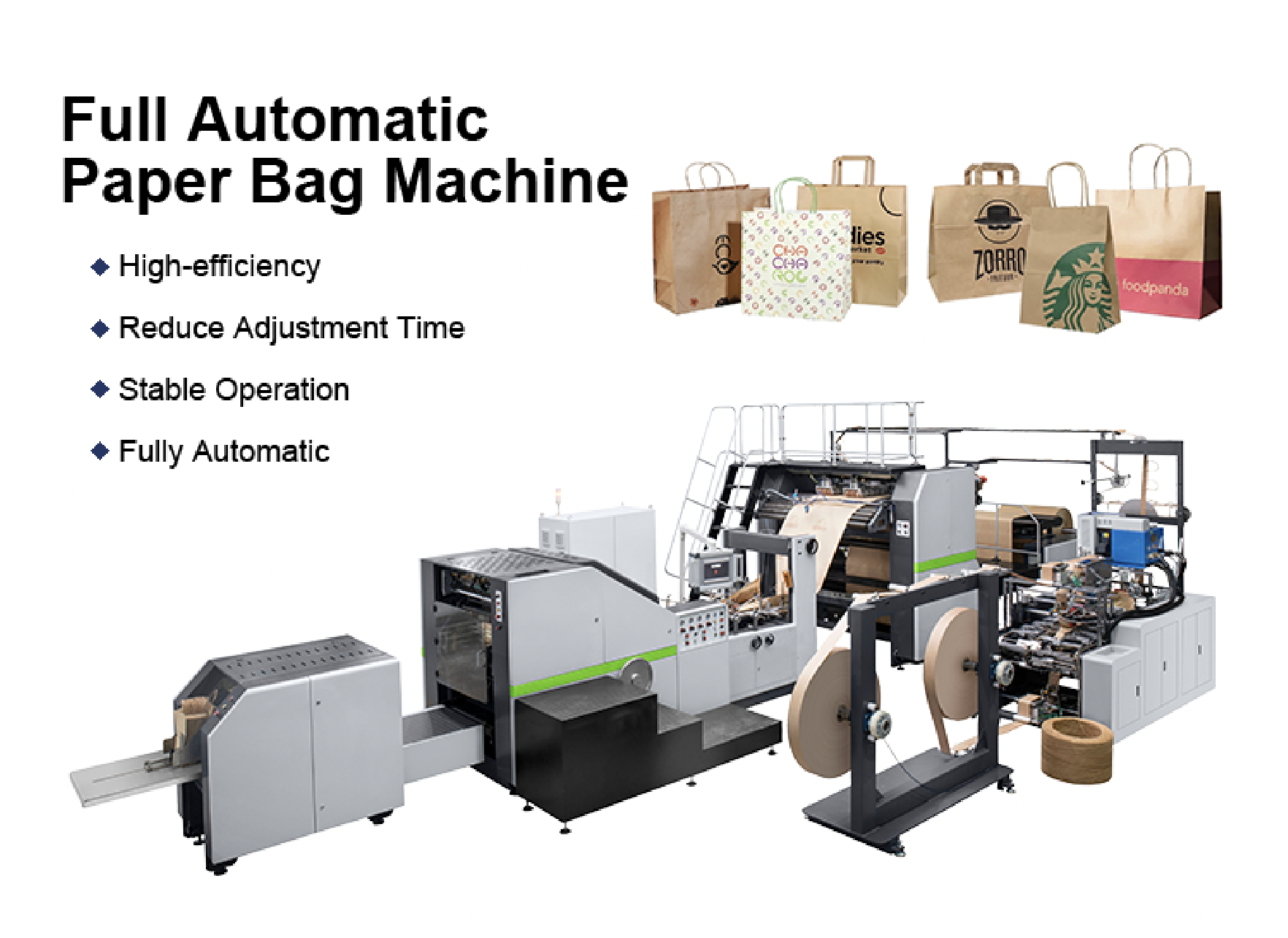

The fully automatic roll-fed twist handle paper bag machine is designed for producing high-quality twist handle paper bags. It offers high-speed, continuous production with minimal labor requirements. The machine is ideal for producing paper bags for retail and other commercial purposes.
The machine can handle a wide range of paper sizes and thicknesses. It ensures consistent cutting and forming, producing strong bags suitable for a variety of packaging needs. The machine operates precisely and efficiently, with a production speed of up to 200 bags per minute.
The fully automatic roll-fed twist handle paper bag machine has advanced features and is easy to operate and maintain. It is equipped with a user-friendly interface and allows customization to meet different production requirements.
Product Parameters
| Model Parameters | RKHF-220T | RKHF-330T | RKHF-450T | RKHF-460T |
|---|
| Bag Cutting Length (C) | 190-390mm (without handle) | 190-290mm (with handle) | 260-530mm (without handle) | 260-430mm (with handle) |
| Bag Width (W) | 90-220mm (without handle) | 120-220mm (with handle) | 130-330mm (without handle) | 220-330mm (with handle) |
| Bag Bottom Width (H) | 50-100mm | 70-180mm | 70-180mm | 90-220mm |
| Paper Thickness | 45-120g/m² (without handle) | 60-120g/m² (with handle) | 60-160g/m² (without handle) | 80-160g/m² (with handle) |
| Max Speed | 30-200pcs/min | 60-150pcs/min | 60-150pcs/min | 60-150pcs/min |
Features of Fully Automatic Roll Fed Twisted Handle Paper Bag Machine
Control system:
Centralized control using PLC and touch screen human-machine interface. It ensures reliable performance and easy operation. The system supports English and Chinese.
Feeding system:
Adopts a shaftless hydraulic feeding system with clamps and hydraulic lifting devices for efficient paper handling.
Tension control:
Equipped with automatic constant tension control and EPC (edge position control) correction system. The material conveying motor is integrated with the frequency converter.
Forming system:
Servo motor controls the main conveyor and bag length. The sealing system is fully automatic, ensuring consistent bag quality.
Paper handling and bag making:
Automatic paper pressing, bottom folding, gluing and bag making are all integrated into a seamless, automated process.
Advantages of Fully Automatic Roll Fed Twisted Handle Paper Bag Machine
High degree of automation:
Supports automatic functions such as edge correction, tension control and gluing to improve efficiency.
Efficient production:
Equipped with advanced servo motors and PLC control systems to ensure stable and efficient machine operation.
Reliable quality:
Using well-known brand components and undergoing rigorous quality testing, it has reliable performance.
Easy operation:
It has a user-friendly touch screen interface that provides real-time working status updates.
Customizable service:
The paper bag size, shape and function can be flexibly adjusted according to customer needs.
Applications Fully Automatic Roll Fed Twisted Handle Paper Bag Machine
Shopping bags:
Ideal for producing durable and stylish retail shopping bags.
Food Bags:
Ideal for making food-grade paper bags for packaging various food products.
Gift Bags:
Ideal for making elegant and sturdy gift bags for packaging gifts and promotional items.
General Packaging:
Can be used to produce a variety of paper bags for different industries and applications.
FAQs of Fully Automatic Roll Fed Twisted Handle Paper Bag Machine
1. What is the maximum production speed of the paper bag machine?
The maximum production speed is 200 pieces per minute, ensuring efficient output.
2. Can the paper bag machine handle different thicknesses of paper?
Yes, the machine is designed to handle paper with a thickness range of 45-160g/m2, depending on the bag design.
3. Is the paper bag machine easy to operate?
Yes, it has a user-friendly touch screen interface for real-time monitoring and easy operation.
4. What types of paper bags can the paper bag machine produce?
The machine can produce a variety of paper bags, including shopping bags, food bags, and gift bags.
5. Can I customize the size and design of the paper bag?
Yes, the machine offers customizable options to adjust the size, shape, and design of the bag to suit your needs.
